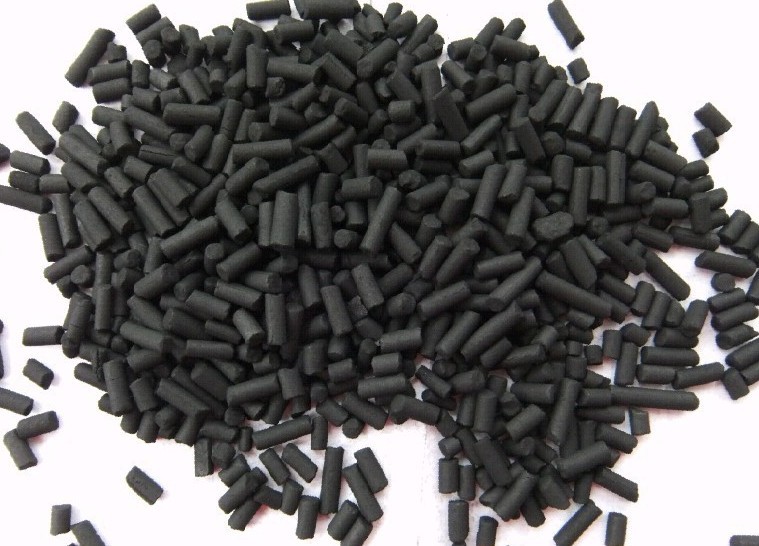

IMPREGNATED ACTIVATED CARBON



Impregnated activated carbon is made from selected carbon by impregnating with different impregnates. This kind of product incorporates activity selectivity and stability. and provides good catalyst and all-purpose protection.

All purpose protection not only protects against toxic gases such as cyanides and arsenide but also against harmful gases such as acid gases, ammonia and carbon monoxide. Desiccants can effectively absorb water vapor from gases. Wide use is found in national defense.

1 Index: Impregnated CuO content: 6.25%

Particle size: 3mm/4mm

2 Index: Impregnated H3PO4 content: 5.0-12.0%

Particle size: 1.5mm/3mm/4mm

3 Index: Impregnated KI (KOH) content: 2.0-6.0%

Particle size: 3mm

4 Index: Impregnated KOH content: 6.0-8.0%

Particle size: 3mm

5 Index: Impregnated NAOH content: 6.0-8.0%

Particle size: 4mm

6 Index: Impregnated Silver content: 0.2-0.5%

Particle size: 3mm

KOH or NaOH Impregnated Coal Based Carbon

Product Unit Description

Product Range Available

Mesh Size (US Sieve)

GAC: 4x6/4x8/4x10

Diameter (mm)

PAC: 3.0/4.0/6.0

Iodine (mg/g) Minimum

800 /850 /900 /950 /1000 /1050 /1100 /1150 /1200

CCL4/CTC (%) Minimum

50 / 55 / 60 / 65 / 70 / 75 / 80 / 85 / 90 / 95

KOH or NaOH Impregnation (g/cc) Minimum

3/5/6/8/10/12

H2S Break Through Capacity (g/cc) Minimum

0.14

Apparent Density (g/cc)

0.50 - 0.66

Abrasion (%) Minimum

75 / 80 / 85 / 90

Hardness (%) Minimum

95

Moisture (%) Maximum

15

KI/Potassium Iodide Impregnated Coal Based Carbon

Product Unit Description

Product Range Available

Mesh Size (US Sieve)

GAC: 4x6/4x8/4x10/8x20

Diameter (mm)

PAC: 1.5/3.0/4.0

Iodine (mg/g) Minimum

1000

CCL4/CTC (%) Minimum

60 / 65 / 70 / 75

KI Impregnation (%) Minimum

2/3/4/5

H2S Break Through Capacity (g/cc) Minimum

0.14

Apparent Density (g/cc)

0.50 - 0.66

Hardness (%) Minimum

90/95

Moisture (%) Maximum

15

Sulfur Impregnated Coal Based Carbon


Product Unit Description

Product Range Available

Mesh Size (US Sieve)

GAC: 8x12/12x40

Diameter (mm)

PAC: 1.5/3.0/4.0

Iodine (mg/g) Minimum

1000

CCL4/CTC (%) Minimum

60 / 65 / 70 / 75

Sulfur Impregnation (%) Minimum

10/12/2003

Apparent Density (g/cc)

0.50 - 0.66

Hardness (%) Minimum

70/80/90/95


 Potassium Permanganate Impregnated Pelletized Coal Based Carbon

Product Unit Description

Product Range Available

Mesh Size (US Sieve)

4x6

Diameter(mm)

4

Iodine (mg/g) Minimum

1000

CCL4/CTC (%) Minimum

60

Ash Content (%) Maximum

12

Moisture (%) Maximum

5

Bulk Density (lbs/cu.ft.)

50

After Impregnation

Moisture (%) Maximum

15

Potassium Permanganate (KMnO4) (%) Minimum

4

H2S Capacity (g/cc) Minimum

0.10



Application

· Mercury removal from natural gas purification of waste odours, removal of chemicals…;

· desulphurization of biogas;

· removal of mercury during the production of hydrogen gas;

· fume purification in laboratory fume cabinets;

· home water treatment in bacteriostatic water filters;

· removal of war gases from NBC filters and gas masks (pursuant to international standards such as CEN and NIOSH);

· ammoniac and amines removal from air.
